Remote Control

1. Red Phone  - N/A
2. Directional Pad - Use the directional pad to move up/down/left/right across primary monitor menu items. In Camera Controller, the user can pan/tilt/zoom and tilt the camera up/down/left/right.
3. Center - Select menu item/stream.
4. Back - Back out of menu item option.
5. +zoom and -zoom - Camera zoom in/out.
6. Microphone - Mute/unmute.
7. Camera - Mute/unmute the camera.
8. +vol and -vol - Increase/decrease volume.
9. Video - Mute/Un-mute camera.
10. Set preset 1 - Press and hold to save preset.
11. Set preset 2 - Press and hold to save preset.
12. Set preset 3 - Press and hold to save preset.

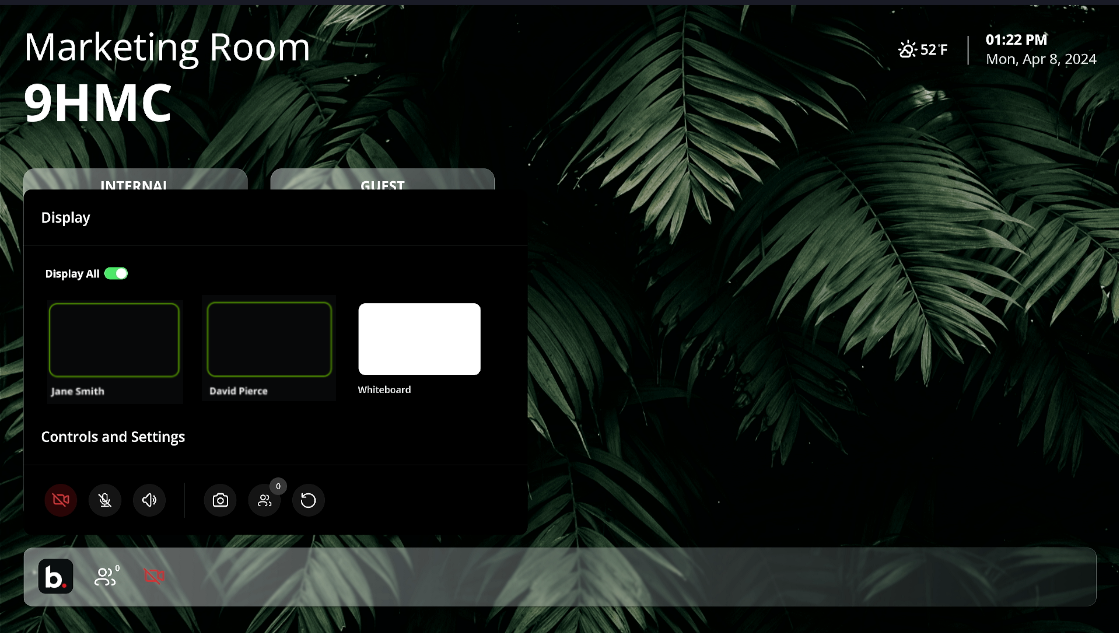

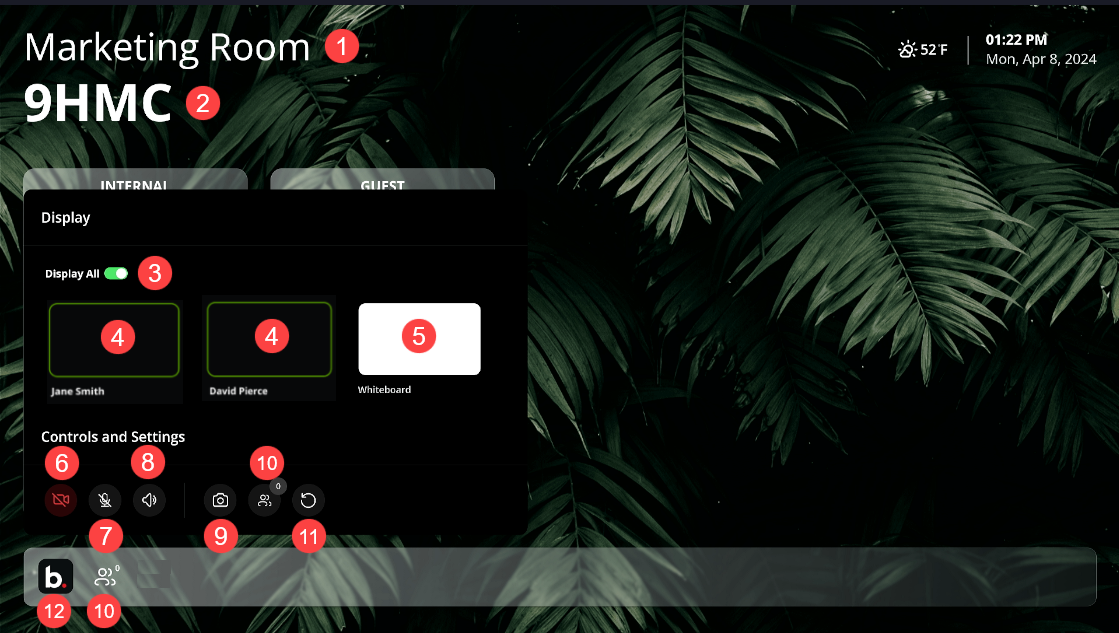

Main Menu

1. Room - The user can change the default Room Name (maximum of 20 characters).
2. Session Number

3. Display All - This feature moderates what is displayed and accessible on the 8 MAX controller. Enable/Disable - Display and hide content.

4. Participants - Displays participant names and profile picture

5. Whiteboard - Click to display whiteboard. Click again to hide.

6. Camera Icon - Mute/Unmute Camera.

7. Microphone Icon - Mute/Unmute Microphone

8. Volume - Main volume

9. ?

10. ?

11. ?

12. ?
